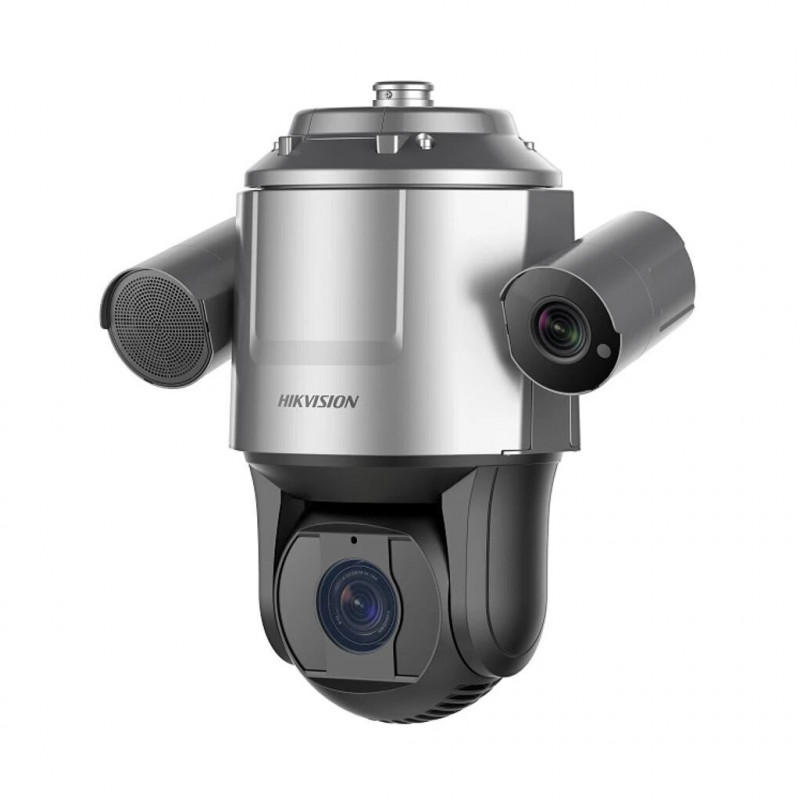

iDS-2SK8144IXS-D/J(40X/2812)(O-STD)(T2) 8-дюймовая 4-мегапиксельная сетевая скоростная купольная камера
2 497 243 тг.
- Производитель: Hikvision
- Модель: iDS-2SK8144IXS-D/J(40X/2812)(O-STD)(T2)
Рады сообщить Вам о запуске нашего B2B портала. Проходите регистрацию, получайте доступ к дилерским ценам и всем возможностям нашего портала.
Camera
Image Sensor
[Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS
Min. Illumination
[Panoramic channel]: Color: 0.0005 Lux @ (F1.4, AGC ON), B/W: 0.0001 Lux @ (F1.4, AGC ON), 0 Lux with IR; [PTZ channel]: Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed
1/25 s to 1/30000 s
Slow Shutter
yes
Focus
semi-auto;manual;auto
Day & Night
ICR
Day/Night Switch
day;night;auto;scheduled-switch
BLC
yes
WDR
120 dB WDR
HLC
yes
3D DNR
yes
Defog
yes
EIS
yes
OIS
no
Regional Exposure
yes
Regional Focus
yes
Image Settings
saturation;brightness;contrast;sharpness
Image Parameters Switch
yes
White Balance
auto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB
Digital Zoom
[panoramic channel] no; [PTZ channel] 16x
Optical Zoom
40 ×
Privacy Mask
rectangle region ;mask color configurable;[panoramic channel] 8 masks, [PTZ channel] 24 masks
Picture Overlay
no
DORI
3310.3 1313.6 662.1 331.0
SNR
≥52dB
General Function
mirror;password protection;watermark;IP address filter
Gain Control
manual;auto
Optical Defog
yes
Lens
Focal Length
[Panoramic channel]: 2.8 to 12 mm; [PTZ channel]: 6.0 to 240 mm
Zoom Speed
[Panoramic channel]: Approx. 2.3 s; [PTZ channel]: Approx. 4.8 s
FOV
[Panoramic channel]: 90° to 34.5°; [PTZ channel]: 56.6° to 1.8°
Aperture
[Panoramic channel]: F1.4; [PTZ channel]: F1.2
Constant Fx throughout the zoom range
[panoramic channel]: yes; [PTZ channel]: no
Illuminator
White Light Distance
no
IR Distance
[Panoramic channel]: up to 50 m; [PTZ channel]: up to 500 m
Smart IR
yes
PTZ
Movement Range (Pan)
[panoramic channel] 0-90°, [PTZ channel] 0-360°
Movement Range (Tilt)
[panoramic channel] -5° to 30°, [PTZ channel] -20° to 90°
Pan Speed
[panoramic channel] pan speed: configurable from 0.1° to 20°/s; [PTZ channel] pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
Tilt Speed
[panoramic channel] tilt speed: configurable from 0.1° to 20°/s; [PTZ channel] tilt speed: configurable from 0.1° to 150°/s, preset speed 150°/s
Proportional Zoom
[panoramic channel]: no; [PTZ channel]: yes
Presets
300
Patrol Scan
8 patrols
Pattern Scan
4 pattern scans
Power-off Memory
yes
Park Action
preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
3D Positioning
yes
PTZ Status Display
yes
Preset Freezing
yes
Scheduled Task
preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
Exception Detection
IP address conflict;HDD full;illegal login;存储器错误;network disconnected
Video
Max. Resolution
2560 × 1440
Stream Type
main stream;sub-stream;third stream
Main Stream
50 Hz: 25/50 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30/60 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression
H.265;H.264;MJPEG
Video Bit Rate
32 to 16384 kbps
H.264 Type
baseline profile;main profile;high profile
H.265 Type
main profile
H.264+
yes
H.265+
yes
SVC
yes
ROI
fixed region
Target Cropping
no
Audio
Audio Compression
G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;AAC;PCM
Audio Bit rate
AAC: 16 kbps, 32 kbps, 64 kbps;MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
Audio Sampling Rate
MP2L2：16kHz，32kHz，48kHz,AAC：16kHz，32kHz，48kHz,PCM：8kHz，16kHz，32kHz，48kHz
Environment Noise Filtering
yes
Smart Features
Feature Abstraction
face feature abstraction, human body feature abstraction, vehicle feature abstraction
Multi-target-type Detection
both channels support multi-target-type detection and capture of human body, face and vehicles
Face Comparison
no
Basic Event
audio exception;motion detection;video tampering alarm
Smart Event
intrusion detection;line crossing detection;region entrance detection;region exiting detection
Smart Tracking
manual tracking;panorama tracking;event tracking;support patrol tracking among multiple detection scenes
Smart Record
ANR;Dual-VCA
Alarm Linkage
preset;patrol scan;pattern scan;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart tracking;audible warning
Smart Encoding
H.265+;H.264+;low bit rate;ROI;SVC
Network
Network Storage
NAS (NFS, SMB/ CIFS); ANR
Protocols
IPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour
API
ISAPI;Hikvision SDK;ONVIF (Profile S, Profile G, Profile T);ISUP
Simultaneous Live View
20
User/Host
32
Security Measures
Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
Client
iVMS-4200
Web Browser
IE 10+, Chrome 57+, Firefox 52+, Safari 12+
Interface
Power Output
no
Communication Interface
RJ45;self-adaptive;1000 M Ethernet Interface
On-board Storage
(Optional) Supports built-in memory card. The memory card needs to be installed before leaving the factory
Alarm Input
7 alarm inputs
Alarm Output
2 alarm output
Audio Input
1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output
1 audio output, line level, impedance: 600 Ω
RS-485
Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
RS-232
no
General
Power
36 VDC
Power Interface
DC input
Power Consumption and Current
Max. 90 W
Operating Conditions
-40℃ to 70℃
Reset
yes
Wiper
no
De-icing
no
Demist
no
Material
ADC12
Dimensions
Φ 485 mm × 487 mm (Φ 19.09" × 19.17")
Weight
Approx. 17 kg (37.48 lb.)
Web Client Language
English
| Бренд | Hikvision |
| Технические характеристики | |
| Дальность ИК-подсветки | 500 м |
| Исполнение | Уличное |
| Материал корпуса | ADC12 |
| Наличие MicroSD | Нет |
| Наличие микрофона | Нет |
| Объектив | 6.0 мм - 240 мм |
| Рабочая температура | -40 °C to 70 °C |
| Разрешение | 4 мп |
| Тип объектива | Вариофокальный |
