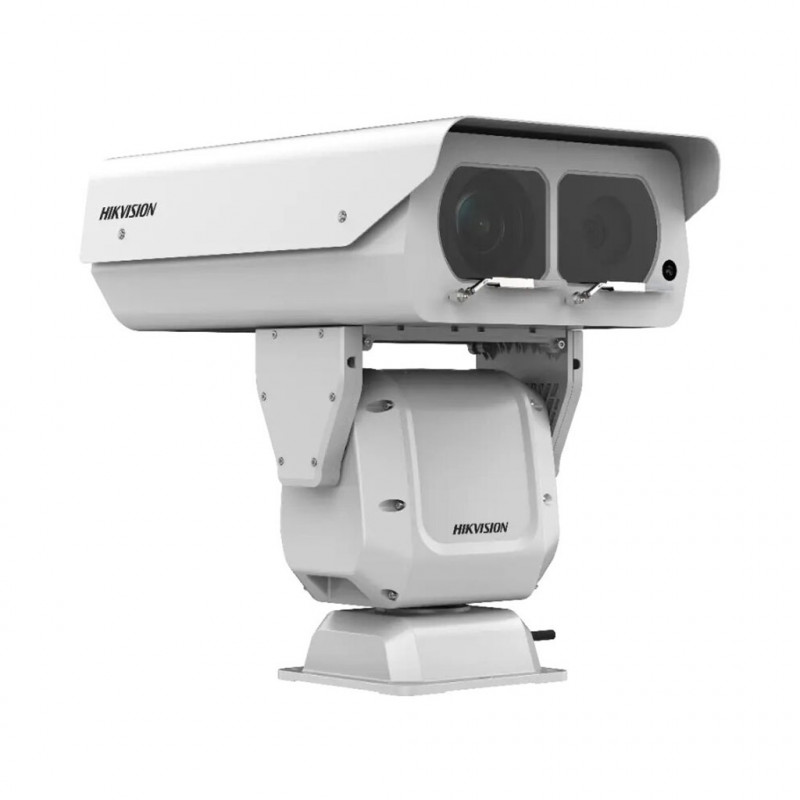

DS-2DYH2A0IXS-D(O-STD)(T2) Серия H 2MP 100X на базе лазерной сетевой системы позиционирования DarkFighter
0 тг.
- Производитель: Hikvision
- Модель: DS-2DYH2A0IXS-D(O-STD)(T2)
Рады сообщить Вам о запуске нашего B2B портала. Проходите регистрацию, получайте доступ к дилерским ценам и всем возможностям нашего портала.
Camera
Image Sensor
1/1.8" progressive scan CMOS
Min. Illumination
Color: 0.005 Lux @ (F3.0，AGC ON); B/W: 0.0005 Lux @ (F3.0，AGC ON), 0 Lux with laser
Shutter Speed
1/1 s to 1/30,000 s
Focus
semi-auto,manual,auto
Day & Night
ICR
3D DNR
yes
Defog
yes
EIS
yes
OIS
yes
White Balance
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Digital Zoom
16x
Optical Zoom
10 mm to 1000 mm, 100 × optical
Privacy Mask
up to 24 masks;polygon region ;mosaic mask ;mask color configurable
Optical Defog
yes
Lens
Focal Length
10 mm to 1000 mm, 100 × optical
FOV
Horizontal field of view: 31.2° to 0.4° (wide-tele) Vertical field of view: 17.8° to 0.2° (wide-tele) Diagonal field of view: 35.5° to 0.5° (wide-tele)
Aperture
F3.0 to F11.5
Illuminator
Laser Distance
up to 3000 m Laser distance
Wavelength
808 nm
PTZ
Movement Range (Pan)
360°
Movement Range (Tilt)
-45° to 45° (auto flip)
Pan Speed
pan speed: configurable from 0.1°～40°/s
Tilt Speed
tilt speed: configurable from 0.1°～20°/s
Proportional Zoom
yes
Presets
300
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans, record time over 10 minutes for each scan
Power-off Memory
yes
Park Action
preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
3D Positioning
yes
PTZ Status Display
yes
Preset Freezing
yes
Scheduled Task
preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
Video
Max. Resolution
1920 × 1080
Stream Type
main stream;sub-stream;third stream
Main Stream
50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression
H.265;H.264;MJPEG
H.264 Type
baseline profile;main profile;high profile
Audio
Audio Compression
G722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Smart Features
Face Capture
yes
Basic Event
motion detection, video tampering alarm, alarm input, alarm output, exception
Smart Event
Line Crossing Detection、Region Entrance Detection、Region Exiting Detection、unattended baggage detection、object removal detection、Intrusion Detection
Smart Encoding
low bit rate;ROI;SVC
Network
Protocols
IPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour
API
CGI;ISUP;Open Network Video Interface
Simultaneous Live View
20
User/Host
Up to 32 users. 3 levels: Administrator, Operator and User
Interface
Communication Interface
1 RJ45 10 M/100 M Ethernet Interface
On-board Storage
Built-in microSD slot;support microSD/microSDHC/microSDXC cards, up to 256 GB
Alarm Input
7 alarm inputs
Alarm Output
2 alarm output
Audio Input
1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output
1 audio output, line level, impedance: 600 Ω
RS-485
Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
General
Power
DC48V, 6.67 A, 320 W max
Operating Conditions
Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
Wiper
Yes. Rain-sensing auto control
Dimensions
662 mm × 449 mm × 620 mm (26.06" × 17.68" × 24.41")
Weight
50 kg (110.25 lb.)
Web Client Language
English
Approval
Protection
IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
| Бренд | Hikvision |
| Технические характеристики | |
| Дальность ИК-подсветки | 3000 м |
| Исполнение | Уличное |
| Наличие MicroSD | Да |
| Наличие микрофона | Нет |
| Объектив | 10 мм - 1000 мм |
| Рабочая температура | -40°C to 70°C |
| Разрешение | 2 мп |
| Тип объектива | Вариофокальный |
