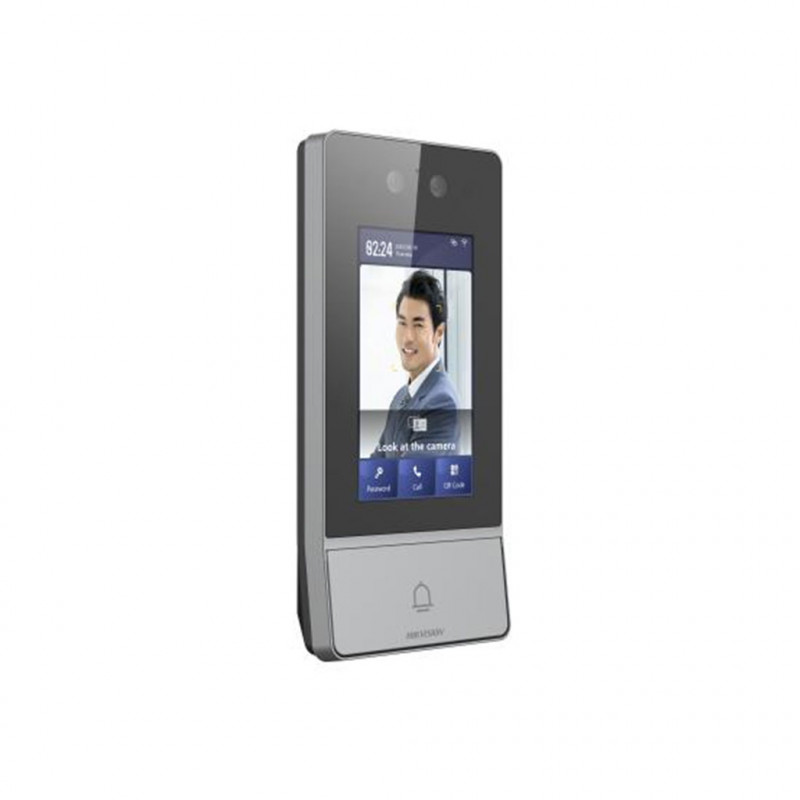

DS-KV9503-WBE1 IP вызывная панель домофона
181 157 тг.
- Производитель: Hikvision
- Модель: DS-KV9503-WBE1
Рады сообщить Вам о запуске нашего B2B портала. Проходите регистрацию, получайте доступ к дилерским ценам и всем возможностям нашего портала.
System parameters
Operation system
Linux
ROM
4 GB
RAM
1 GB
Processor
Embeded high performance processor
Display parameters
Screen size
4.3-inch
Operation method
Capacitive touch screen
Type
IPS
Resolution
800 × 480
Brightness
425 cd/m²
Video parameters
Lens
2
Resolution
2 × 2 MP
FOV
Horizontal: 88°, Vertical: 44°
Wide dynamic range (WDR)
Support 120 dB
Supplement light
IR light, up to 3 m
Video compression standard
Main stream and sub stream: H.264 Third stream: H.265
Audio parameters
Audio input
1 built-in omnidirectional microphone
Audio compression standard
G.711 U, G.711 A
Audio output
1 built-in loudspeaker
Audio compression bitrate
64 Kbps
Audio quality
Noise suppression and echo cancellation
Volume adjustment
Adjustable
Capacity
User capacity
20000
Face capacity
10000
Fingerprint capacity
/
Card capacity
100000
Message capacity
/
Linked indoor station capacity
500
Sub door station capacity
16
Network parameters
Network protocol
TCP/IP, RTSP
Wi-Fi
IEEE802.11b, IEEE802.11g, IEEE802.11n
Bluetooth
Reserved
3G/4G
/
Authentication
Card reading frequency
13.56 MHz
Face recognition distance
0.3 to 2 m
Face recognition accuracy rate
≥ 99%
Face recognition duration
＜ 0.2 s per person
Device interfaces
Alarm input
4 (2 exit butttons and 2 door contacts by default)
Network interface
1 RJ-45, 10/100 Mbps self-adaptive
TAMPER
1
Exit button
2
RS-485
1
USB
/
Wiegand
/
TF card
Reserved
Lock control
2 relays, Max. 30 VDC 2 A, lock 2 needs secure module
Door contact input
2
General
Button
1 physical button
Installation
Surface mounting
Indicator
/
Weight
Net weight: 0.405 kg Gross weight: 0.752 kg
Protective level
IP65, IK08
Working temperature
-40 °C to 60 °C (-40 °F to 140 °F)
Working humidity
10% to 90% (no-condensing)
Dimension (W × H × D)
182 mm × 85 mm × 26 mm (7.16" × 3.34" × 1.01")
Battery
/
Power supply
12 VDC, 1.5 A
Application environment
Outdoor
Power consumption
≤ 6 W
Language
English,French,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek
